ImagCAD

CAD, CAM and CNC for Windows

Draw in 2D, model parts in 3D and check toolpaths in simulation before exporting G-code.

See the cutting example
3D plasma cutting preview

What you can do in ImagCAD

2D drafting and 3D modelling

Dimension 2D drawings and build solid parts from sketches. Edit dimensions and operations in the model history.

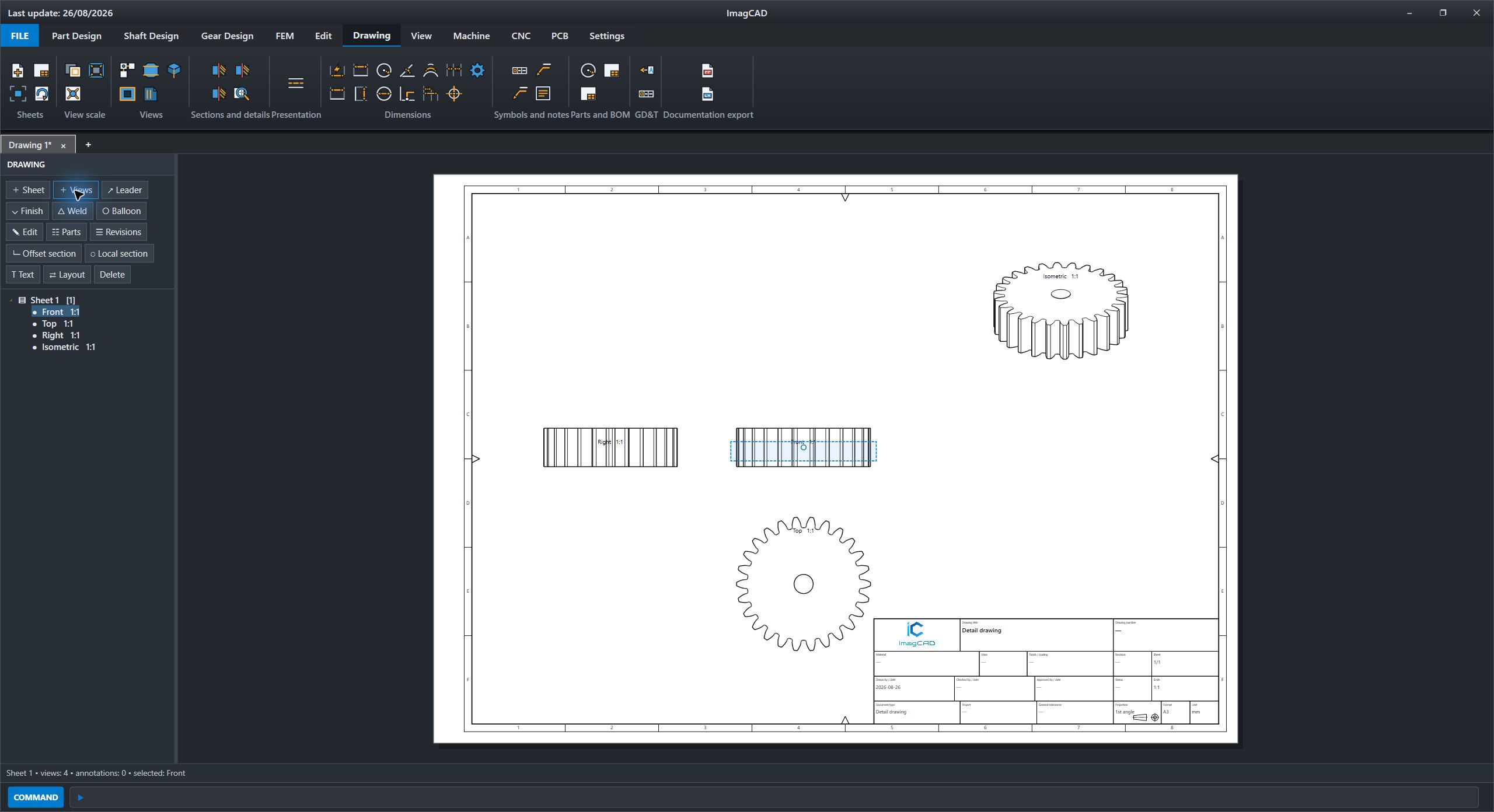

Technical drawing

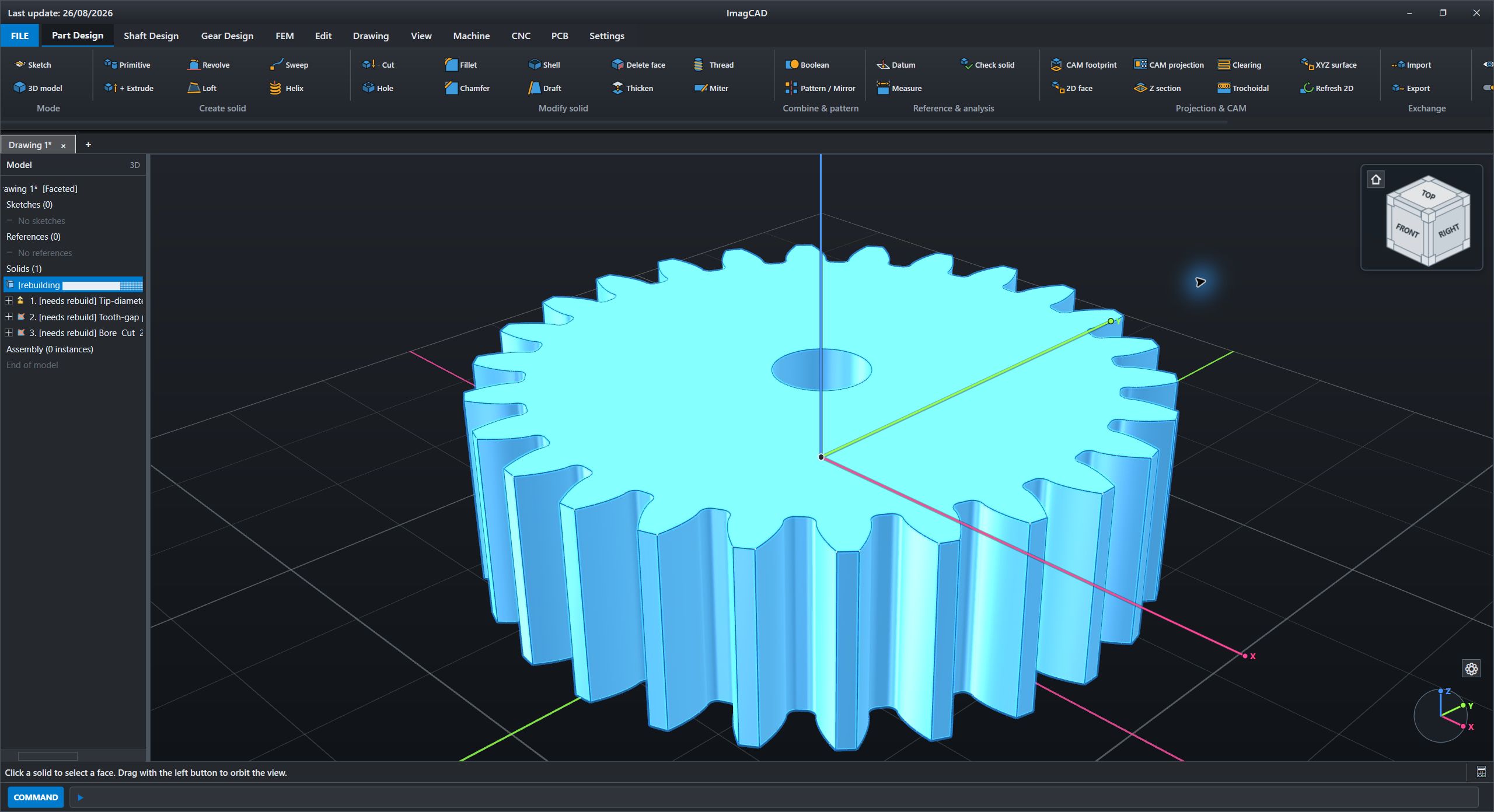

3D part model

CAM and CNC

Lay out parts on a sheet, set the cutting order, check tool motion in 3D and export G-code.

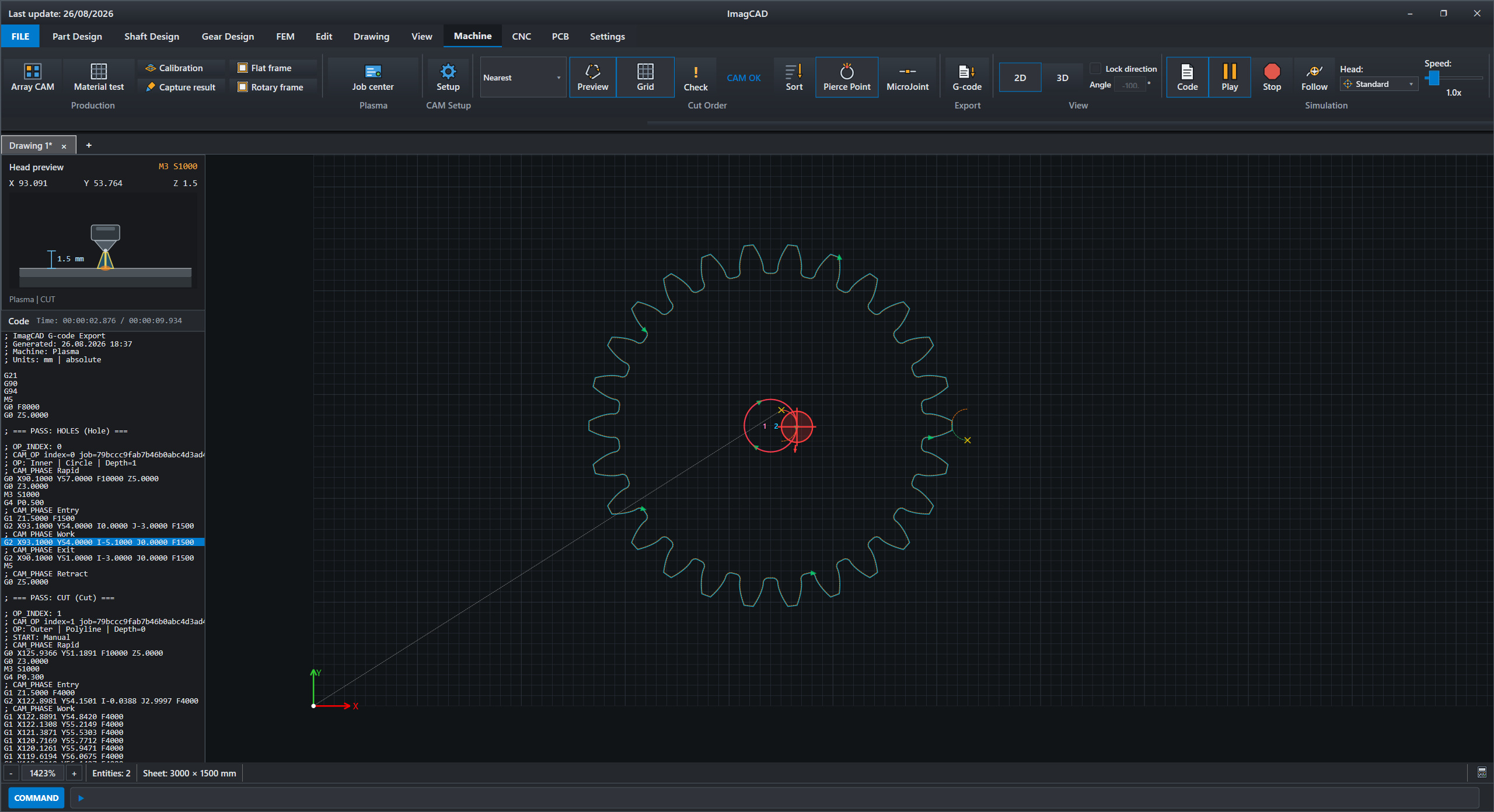

CAM toolpaths

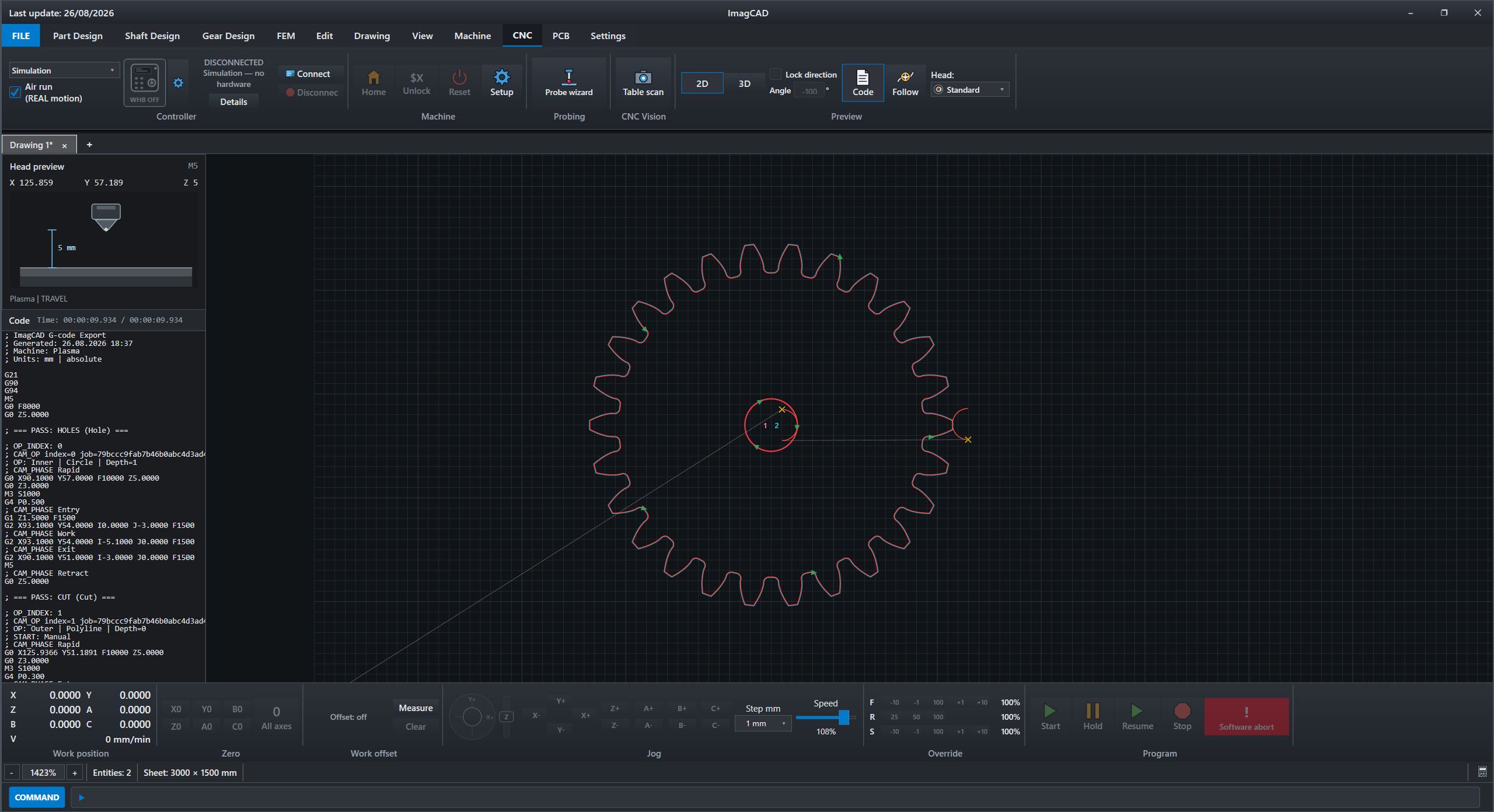

CNC operator view

Gear design

Set gear parameters and inspect how the teeth mesh.

Plasma cutting demo

One gear profile, six parts on a single sheet. The screenshots show the job from drawing to G-code.

  1. 2D drawing

    The drawing contains a 26-tooth profile and a 10 mm bore.

  2. Sheet nesting

    ImagCAD arranges six copies on a 260 × 165 mm sheet.

  3. Plasma simulation

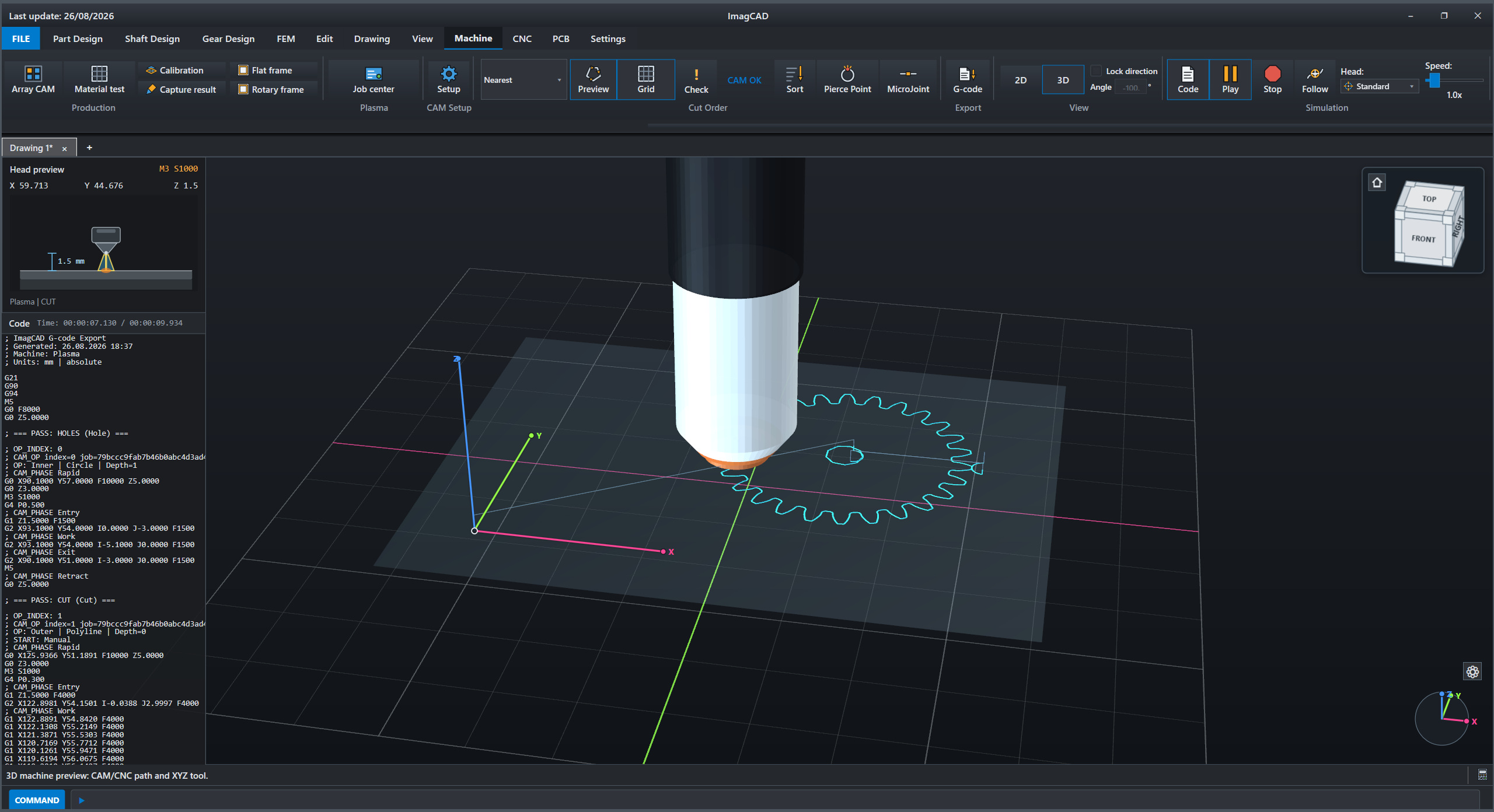

    The torch cuts each bore before the outer contour. In the 3D preview, it’s piercing the sheet for the first bore.

    Back to the 3D preview
  4. G-code export

    G2 cuts the first bore. M5 switches off the torch before it retracts.

    ; CAM_PHASE Work
    G2 X48.0000 Y42.8422 I-5.0000 J0.0000 F3000
    ; CAM_PHASE Exit
    M5
    ; CAM_PHASE Retract
    G0 Z5.0000

Windows release

ImagCAD is in development.
